FLIR MR176
Support Center

FLIR MR176

Go to Product Details Page

For Support
Please call 1-800-GO-INFRA (464-6372) or 1-603-324-7600 or click here for support

For Service
Call 1-866-354-7911 or Submit RMA

Help others by sharing your experience with our products.

Overview:
Warranty & RMA

Test & Measurement Warranty

Learn more
Resources:
Datasheet: FLIR MR176 Datasheet
Download
User Manual: FLIR MR176 User Manual
Download
FLIR Test & Measurement Limited Ten Year Warranty
Download
Brochure/Catalog: Moisture Meter Brochure
Download
Brochure/Catalog: What Do You Need To Measure Brochure TR
Download
Datasheet: Scheda tecnica MR176
Download
Specifications
Overview
Laser Orientation
Single laser pointer to center of thermal image
Packaging Size
33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)
Sensitivity
<150mK
Typical Usage
4 work weeks
Warranty
10 year
Compliance & Certifications
Agency Approvals
CE, FCC Class B, RCM
Environmental
Mixing Ratio
Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)
Relative Humidity
Range 0 to 100% / Basic Accuracy 2.5%RH
Vapor Pressure
Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa
Imaging & Optical
Continuous Run Time
18 hours max
Display Type
QVGA (320 x 240 pixel) 2.3" color TFT graphical display
Gallery
17540
Image Update Speed Frequency
9Hz
Imaging Detector
FLIR Lepton microbolometer
Spectral Response
8 to 14µm
Thermal image minimum focus distance
4" (10cm)
Thermal image palettes
Iron, Rainbow, Ice, Greyscale
Field of View [W x H]
51° × 38°
Thermal Image Resolution [W x H]
4800 pixels (80 × 60)
Measurement & Analysis
Air Temperature
Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Detection Limit
19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
Dew Point
Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Image Calibration
Automatic with manual lock scale option
Measurement Resolution
0.1
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
9 Material Groups
Pinless Measurement Depth
0.75" (19mm) Max
Pinless Moisture Range
0 to 100
Response Time Pin Mode
750ms
Response Time Pinless
100ms
Other
Certification Standards
EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Power
Battery
3.7V, 3000mAh Li-ion rechargeable via micro USB
Shipping Information
Includes
MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
Storage Media
Saved Image File format
BMP with measurement values overlaid
Stored Image Capacity
9999 images

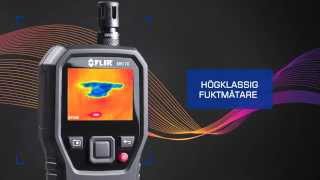

FLIR MR176 IR-fuktdetektor
